Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,925HTML edition
← Chapter contentsManual collection
Installation — original illustration 1, reference 8925Original colors & callouts · Select to enlarge

NOTE: With the transmission in a horizontal position, move it toward the engine and position it on the dowel pins.

NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine.

7. Install the LH side bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)

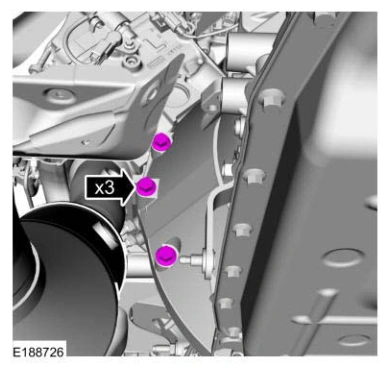

Installation — original illustration 2, reference 8925Original colors & callouts · Select to enlarge

8. Install the RH side bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 8925

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
