Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,926HTML edition
← Chapter contentsManual collection

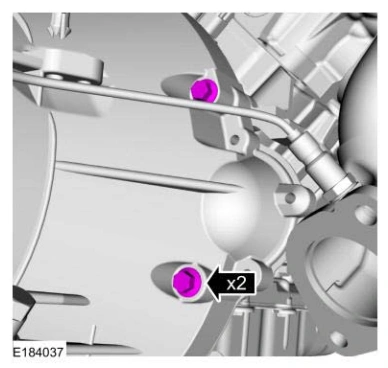

Installation — original illustration 1, reference 8926Original colors & callouts · Select to enlarge

9. Install the upper bellhousing bolt and stud bolt.

Torque

: 35 lb.ft (48 Nm)

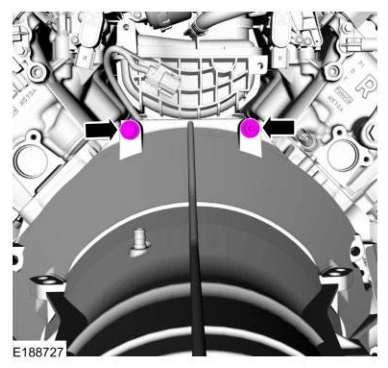

Installation — original illustration 2, reference 8926Original colors & callouts · Select to enlarge

NOTE: Only rotate the crankshaft in a clockwise direction.

10. Install the new torque converter nuts.

Torque

: 35 lb.ft (48 Nm)
