Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8928

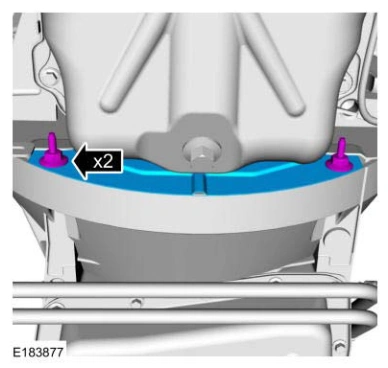

Installation — original illustration 1, reference 8928Original colors & callouts · Select to enlarge

13.

1. Push the transmission electrical connector in to connect.

2. Rotate the transmission electrical connector clockwise.

Attach the wiring harness retainers.

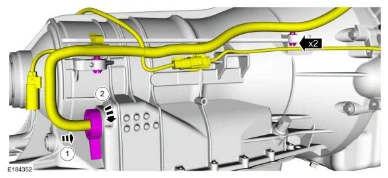

Installation — original illustration 2, reference 8928Original colors & callouts · Select to enlarge

14. Connect the selector lever cable and wiring harness retainers to the transmission case.
