Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8930

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Installation — original illustration 1, reference 8930Original colors & callouts · Select to enlarge

18. Install the transmission fluid cooler tubes and the new bolt.

Torque

: 18 lb.ft (25 Nm)

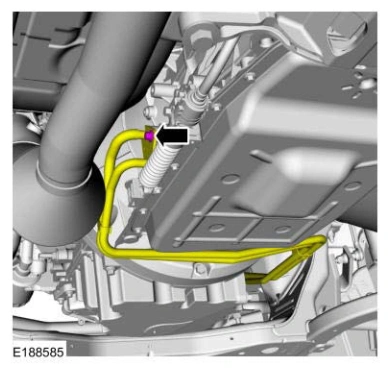

Installation — original illustration 2, reference 8930Original colors & callouts · Select to enlarge

19. Install the transmission cooling tube bracket and nut.

Torque

: 124 lb.in (14 Nm)
