Transmission Fluid Pan, Gasket And Filter — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,933HTML edition
← Chapter contentsManual collection

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Remove the transmission fluid fill plug transmission fluid level indicator assembly.

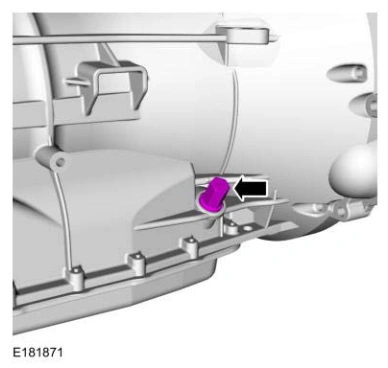

Transmission Fluid Pan, Gasket And Filter — original illustration 1, reference 8933Original colors & callouts · Select to enlarge

3. Remove the transmission fluid pan bolts and the transmission fluid pan and allow the transmission fluid to drain.

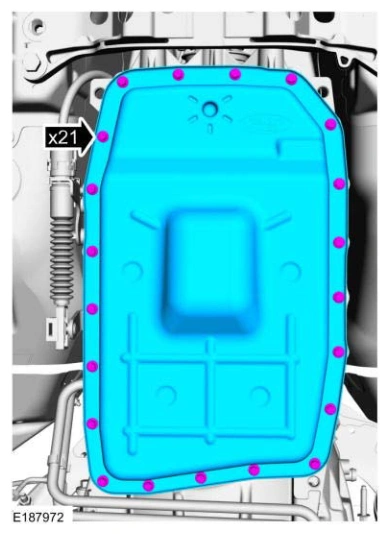

Transmission Fluid Pan, Gasket And Filter — original illustration 2, reference 8933Original colors & callouts · Select to enlarge

4. Remove the transmission fluid pan gasket.
