Transmission Fluid Pan, Gasket And Filter — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8935

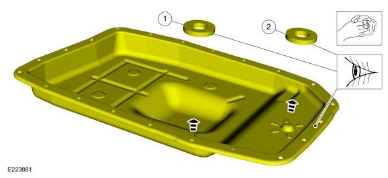

Transmission Fluid Pan, Gasket And Filter — original illustration 1, reference 8935Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID PAN, GASKET AND FILTER

> INSTALLATION

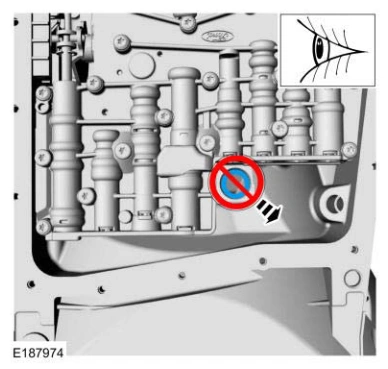

1. Inspect the transmission pump bore for the transmission fluid filter seal. If the seal is in the pump, carefully remove the seal without scratching the transmission pump bore.

Transmission Fluid Pan, Gasket And Filter — original illustration 2, reference 8935Original colors & callouts · Select to enlarge

2. Make sure that the seal is on the transmission fluid filter and lubricate the seal with automatic transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
