Transmission Fluid Pan, Gasket And Filter — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,937HTML edition
← Chapter contentsManual collection

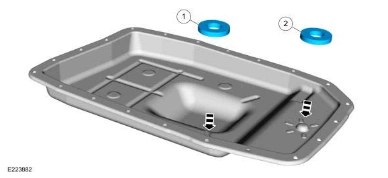

Transmission Fluid Pan, Gasket And Filter — original illustration 1, reference 8937Original colors & callouts · Select to enlarge

NOTE: The transmission fluid pan gasket can be reused if not damaged.

5. Install a new transmission fluid pan gasket if required.

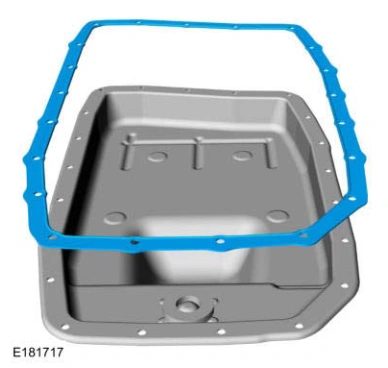

Transmission Fluid Pan, Gasket And Filter — original illustration 2, reference 8937Original colors & callouts · Select to enlarge

NOTE: Tighten the transmission fluid pan bolts in a crisscross pattern.

6. Install the transmission fluid pan and tighten the bolts in a crisscross pattern.

Torque

: 80 lb.in (9 Nm)
