Transmission Fluid Pan, Gasket And Filter — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,936HTML edition
← Chapter contentsManual collection

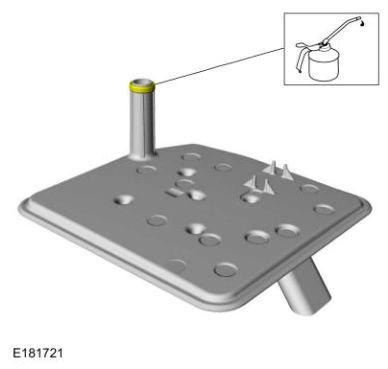

Transmission Fluid Pan, Gasket And Filter — original illustration 1, reference 8936Original colors & callouts · Select to enlarge

NOTE: The transmission fluid filter may be reused if no excessive contamination is indicated.

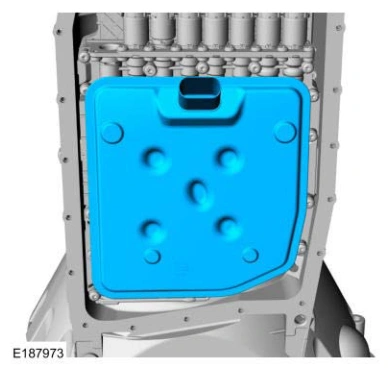

3. If required, install a new transmission fluid filter.

Transmission Fluid Pan, Gasket And Filter — original illustration 2, reference 8936Original colors & callouts · Select to enlarge

4. Position the magnet(s) in the transmission fluid pan.

1. Late build transmissions

2. All transmissions
