Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8939

Removal — original illustration 1, reference 8939Original colors & callouts · Select to enlarge

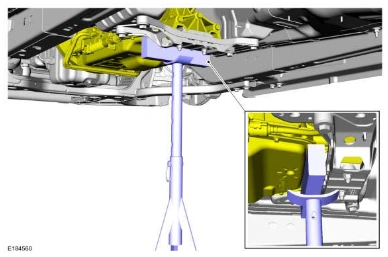

NOTE: Make sure the jackstand and wooden block makes contact on the outer rib of the transmission fluid pan.

3. Using a jackstand and a wooden block, support the transmission.Use the General Equipment: Vehicle/Axle Stands Use the General Equipment: Wooden Block

Removal — original illustration 2, reference 8939Original colors & callouts · Select to enlarge

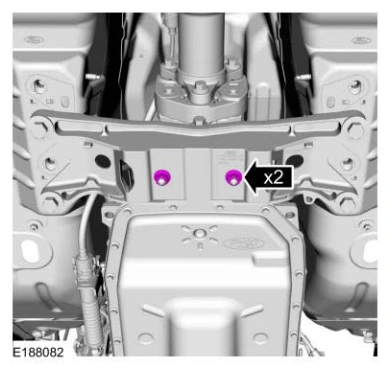

4. Remove the bolts and the transmission support insulator.

Torque

: 76 lb.ft (103 Nm)

Removal — original illustration 3, reference 8939Original colors & callouts · Select to enlarge
