Main Control Valve Body — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8942

blank plug can fall out of the transmission case. Damage to the valve or plug can occur if the valve or plug falls out.

5. Remove the bolts from the main control assembly and remove the main control assembly and the thermal bypass valve or blank plug. Inspect the thermal bypass valve for damage and discard the valve if damage is found.

NOTE: Vehicles without transmission fluid warmer.

1. Thermal bypass valve

NOTE: Vehicles equipped with transmission fluid warmer.

2. Blank plug

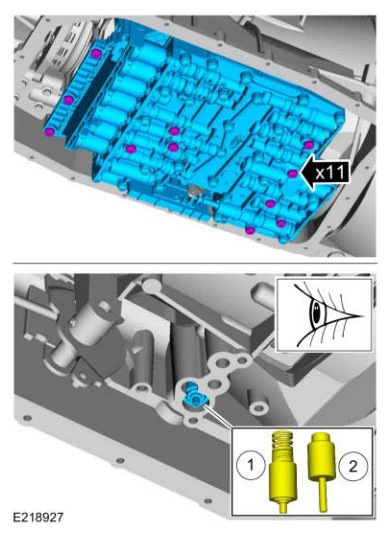

Main Control Valve Body — original illustration 1, reference 8942Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > MAIN CONTROL VALVE BODY > INSTALLATION

1. Inspect the bias spring to make sure it is positioned correctly in the transmission case.

Ford_Mustang_all_2015-2017.pdf · source reference 8942
