Main Control Valve Body — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,943HTML edition
← Chapter contentsManual collection

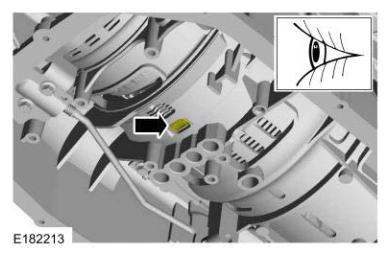

Main Control Valve Body — original illustration 1, reference 8943Original colors & callouts · Select to enlarge

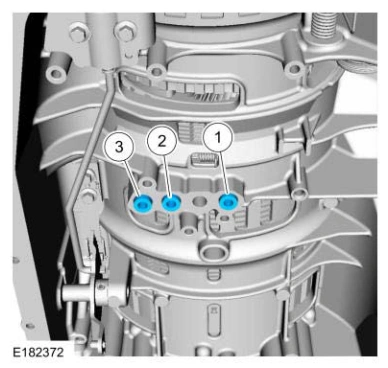

NOTE: Before installing the main control assembly into the transmission case, verify the presence and orientation of the center support feed tube seals. Also note that one or more of the center support feed tube seals may have remained in the main control assembly during removal and should be installed into the transmission case at this time.

2.

1. Center support feed tube seal (7G199 Black)

2. Center support feed tube seal (7G087 Green or Orange)

3. Center support feed tube seal (7G084 Blue)

Main Control Valve Body — original illustration 2, reference 8943Original colors & callouts · Select to enlarge

3. Verify the rubber adapter is in place.
