Main Control Valve Body — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8946

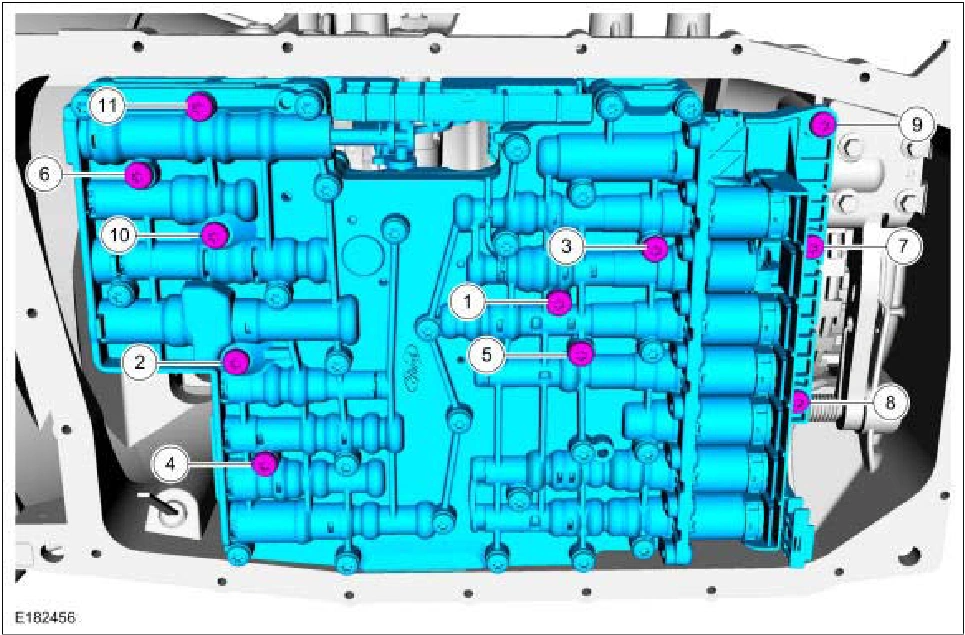

Fig 1: Main Control Valve Body Bolts Tightening Sequence

Main Control Valve Body — original illustration 1, reference 8946Original colors & callouts · Select to enlarge

Courtesy of FORD MOTOR CO.

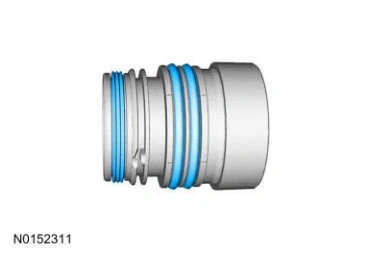

7. If removed, install the bulkhead connector sleeve seals.

Main Control Valve Body — original illustration 2, reference 8946Original colors & callouts · Select to enlarge

8. With the release tab down and unlocked, push the outer shell of the bulkhead electrical connector into the transmission. Make sure the bulkhead connector is fully seated into the molded leadframe. Push up on the tab and lock the outer shell of the bulkhead electrical connector in place. Make sure the locking tab is securely locked.
