Output Shaft Seal — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,949HTML edition

← Chapter contents Manual collection

Output Shaft Seal — original illustration 1, reference 8949Original colors & callouts · Select to enlarge

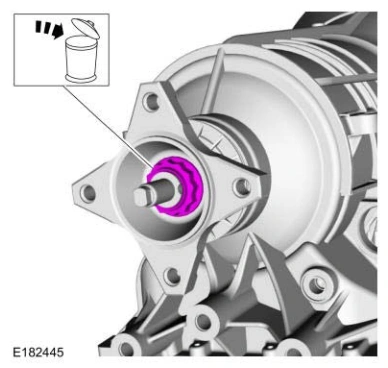

3. Remove and discard the output shaft flange retaining nut.

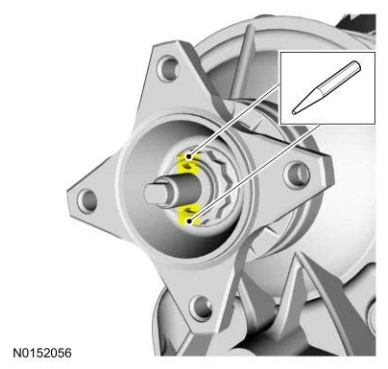

Output Shaft Seal — original illustration 2, reference 8949Original colors & callouts · Select to enlarge

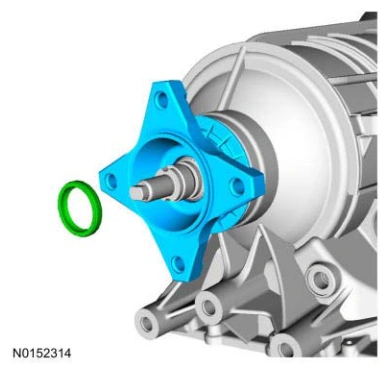

4. Remove the output shaft flange seal and the output shaft flange.

Output Shaft Seal — original illustration 3, reference 8949Original colors & callouts · Select to enlarge
