Main Control Valve Body — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8947

Main Control Valve Body — original illustration 1, reference 8947Original colors & callouts · Select to enlarge

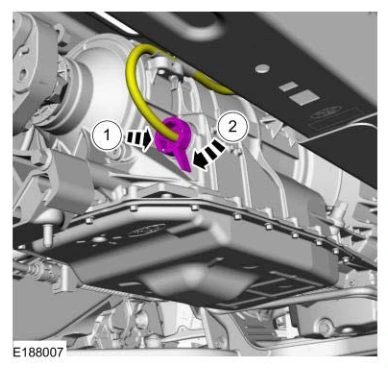

1. Connect the transmission electrical connector.

2. Rotate the transmission electrical connector clockwise to lock it.

Main Control Valve Body — original illustration 2, reference 8947Original colors & callouts · Select to enlarge

10. Install the transmission fluid pan and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .

NOTE: If an individual solenoid was replaced clear the adaptive strategy.

11. If any of the solenoids were replaced, Perform a Road Test - Adaptive Drive Cycle after the adaptive strategy is cleared. Refer to: Adaptive Learning Drive Cycle .

NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission
