Output Shaft Seal — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,950HTML edition
← Chapter contentsManual collection

5. Remove and discard the output shaft seal.

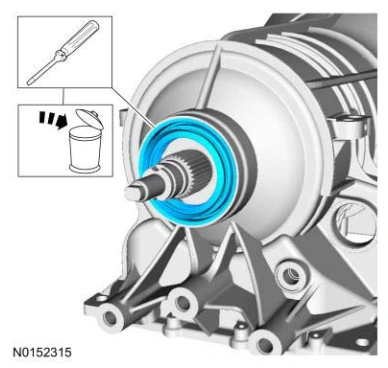

Output Shaft Seal — original illustration 1, reference 8950Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > OUTPUT SHAFT SEAL > INSTALLATION

1. Position a new output shaft seal on the special tool. Use Special Service Tool: 205-199 (T83T- 3132-A1)Installer, Spindle/Axle Shaft., 307-715Installer, Output Seal (4X2).

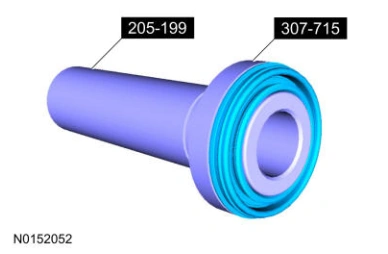

Output Shaft Seal — original illustration 2, reference 8950Original colors & callouts · Select to enlarge

2. Using the special tool, install the output shaft seal.Use Special Service Tool: 205-199 (T83T- 3132-A1) Installer, Spindle/Axle Shaft., 307-715 Installer, Output Seal (4X2).
