Main Control Valve Body — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,945HTML edition
← Chapter contentsManual collection

Alignment holes.

3. Align the manual valve with the manual valve pin.

4. Loosely install the 2 bolts.

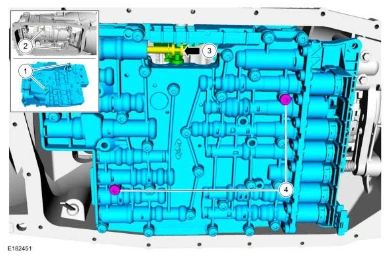

Main Control Valve Body — original illustration 1, reference 8945Original colors & callouts · Select to enlarge

6. Install the main control valve body bolts and tighten in the sequence shown.

Torque

: 71 lb.in (8 Nm)
