Main Control Valve Body — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8941

Main Control Valve Body — original illustration 1, reference 8941Original colors & callouts · Select to enlarge

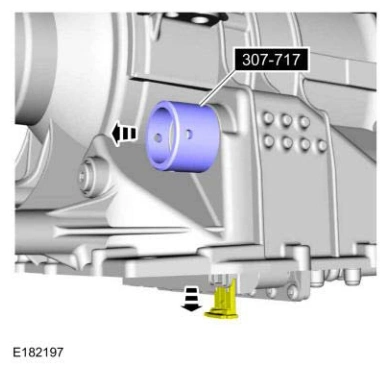

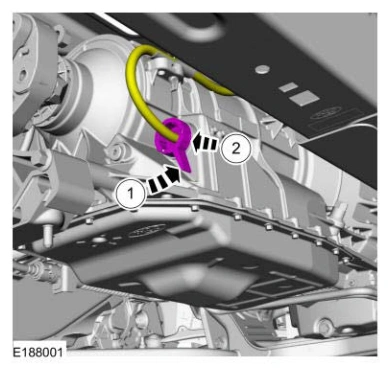

3. Pull the transmission bulkhead connector sleeve retainer down to release it. Using the special tool, pull the outer shell of the bulkhead connector sleeve out of the transmission. Use Special Service Tool: 307-717 Remover, Kostal Sleeve.

Main Control Valve Body — original illustration 2, reference 8941Original colors & callouts · Select to enlarge

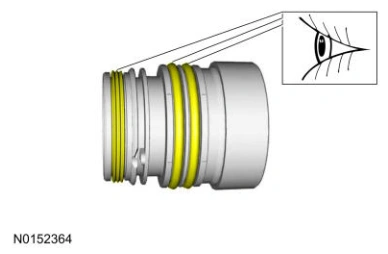

4. Inspect the bulkhead connector sleeve seals and install new seals if damage is found.

Main Control Valve Body — original illustration 3, reference 8941Original colors & callouts · Select to enlarge

NOTE: During removal of the main control assembly, the thermal bypass valve or
