Transmission Fluid Pan, Gasket And Filter — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,934HTML edition
← Chapter contentsManual collection

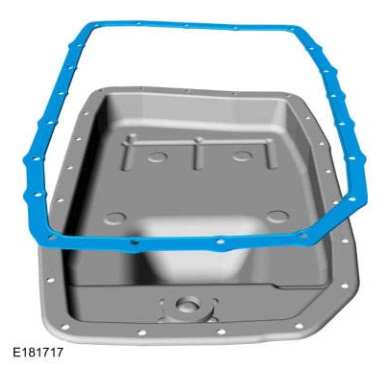

Transmission Fluid Pan, Gasket And Filter — original illustration 1, reference 8934Original colors & callouts · Select to enlarge

NOTE: The transmission fluid filter may be reused if no excessive contamination is indicated.

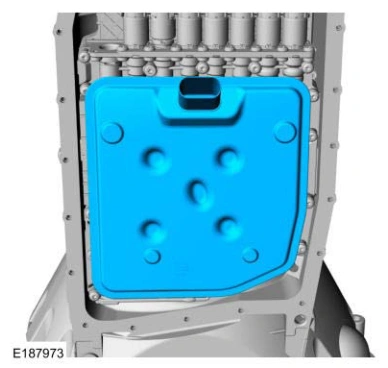

5. Remove the transmission fluid filter.

Transmission Fluid Pan, Gasket And Filter — original illustration 2, reference 8934Original colors & callouts · Select to enlarge

6. Clean and inspect the transmission fluid pan and magnet(s).

1. Late build transmissions

2. All transmissions
