Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8931

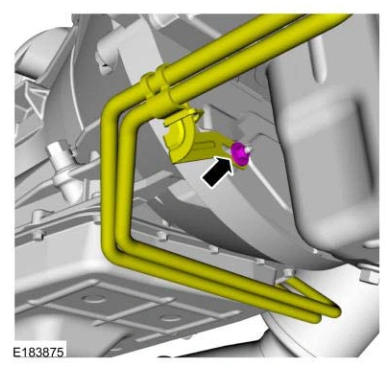

Installation — original illustration 1, reference 8931Original colors & callouts · Select to enlarge

20.

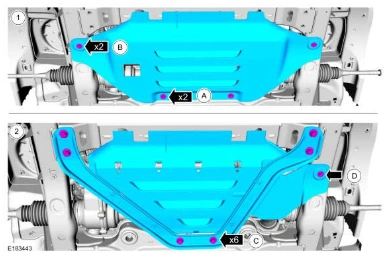

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Install the underbody shield and the bolts.

Torque

: A: 97 lb.in (11 Nm) B: 18 lb.in (2 Nm)

2. Install the subframe bracket and underbody shield assembly and the bolts.

Torque

: C: 46 lb.ft (63 Nm) D: 18 lb.in (2 Nm)

Installation — original illustration 2, reference 8931Original colors & callouts · Select to enlarge

21. Install the LH HO2S and the LH catalyst monitor sensor. Refer to: Heated Oxygen Sensor (HO2S) . Refer to: Catalyst Monitor Sensor .

22.
