Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,927HTML edition
← Chapter contentsManual collection

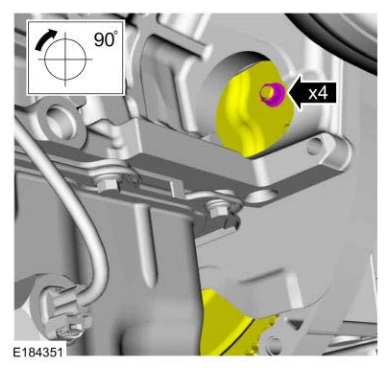

Installation — original illustration 1, reference 8927Original colors & callouts · Select to enlarge

11. Install the rubber access plug.

Installation — original illustration 2, reference 8927Original colors & callouts · Select to enlarge

12. Install the flexplate inspection cover and the stud bolts.

Torque

: 35 lb.ft (48 Nm)
