Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,923HTML edition
← Chapter contentsManual collection

Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

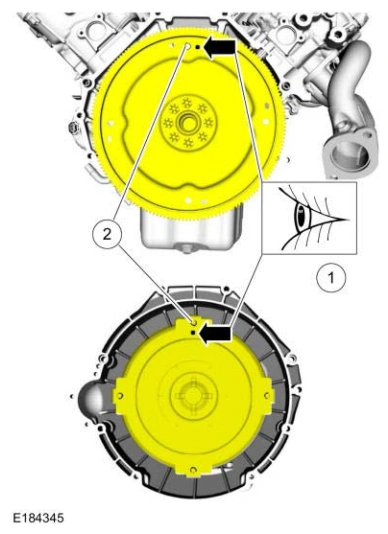

Installation — original illustration 1, reference 8923Original colors & callouts · Select to enlarge

4. Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

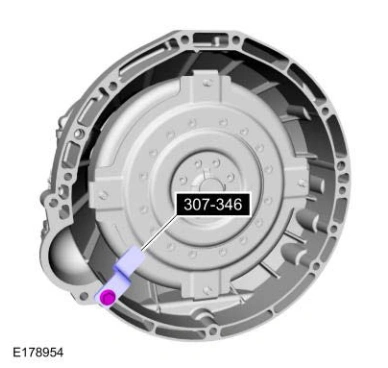

Installation — original illustration 2, reference 8923Original colors & callouts · Select to enlarge

NOTE: If transmission was disassembled, add transmission fluid to the transmission.

NOTE: If transmission is being replaced, remove the transmission fluid fill plug
