Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8909

Rotate the transmission electrical connector clockwise.

3. Attach the wiring harness retainers.

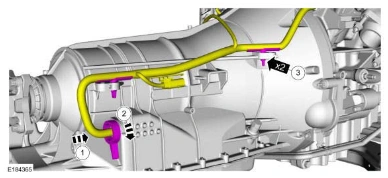

Installation — original illustration 1, reference 8909Original colors & callouts · Select to enlarge

14. Attach the wiring harness retainer to the LH of the transmission.

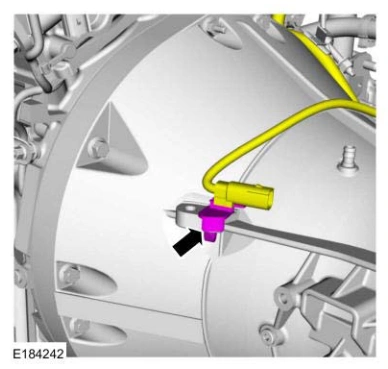

Installation — original illustration 2, reference 8909Original colors & callouts · Select to enlarge

15. Connect the selector lever cable retainer to the transmission case.

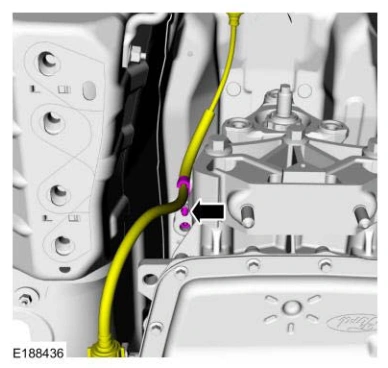

Installation — original illustration 3, reference 8909Original colors & callouts · Select to enlarge

16.
