Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8910

Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

17.

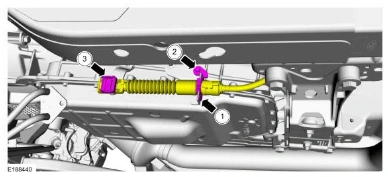

1. Connect the selector lever cable to the bracket.

2. Install the bolt.

Torque

: 62 lb.in (7 Nm)

3. Connect the selector lever cable to the selector lever.

Installation — original illustration 1, reference 8910Original colors & callouts · Select to enlarge

NOTE: Lubricate with clean transmission fluid.

18. Inspect the transmission fluid cooler tube band seals and backing rings for damage, replace if necessary.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
