Low/reverse clutch feed tube (Green or 7G087 Orange) Intermediate clutch feed tube (Blue) 7G084 Output shaft retaining nut 7045 TR sensor roll pin 7G100 Park pawl abutment retaining screw and W711235-S300 washer TR detent spring retaining screw and washer W711235-S300 Direct clutch hub retaining ring 7D483 Direct clutch hub 7F236 Overdrive clutch balance piston retaining ring 7C122 Intermediate clutch piston retaining ring 7A577 Low/reverse clutch piston return spring retainer 7H318
Original table alignment retained · Scroll horizontally if needed
2. For information on component views and base part numbers. Refer to: Transmission Description .

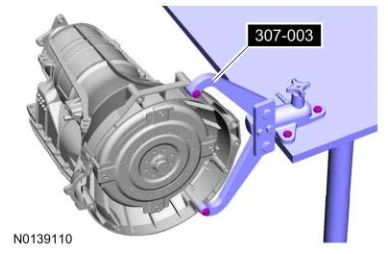

3. Install the special tool on the torque converter housing and install the transmission on a bench. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.
4. Using the special tool, remove the torque converter.Use Special Service Tool: 307-091 Handle, Torque Converter.
