Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,981HTML edition
← Chapter contentsManual collection

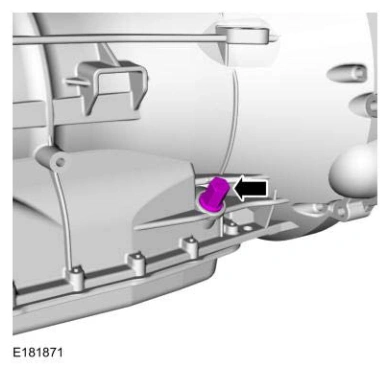

Remove the transmission fluid fill plug.

Shift Solenoids (Ss) — original illustration 1, reference 8981Original colors & callouts · Select to enlarge

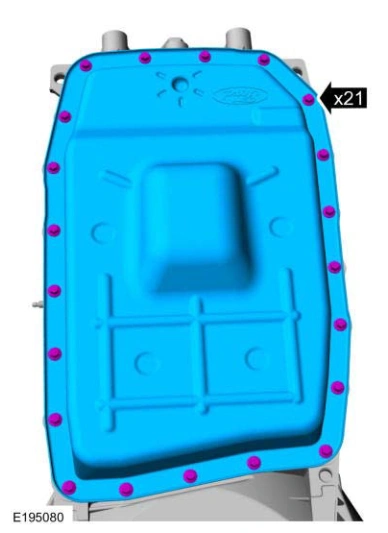

8. Remove the transmission fluid pan bolts and the transmission fluid pan.

Shift Solenoids (Ss) — original illustration 2, reference 8981Original colors & callouts · Select to enlarge

9. Remove the transmission fluid pan gasket.
