Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,984HTML edition

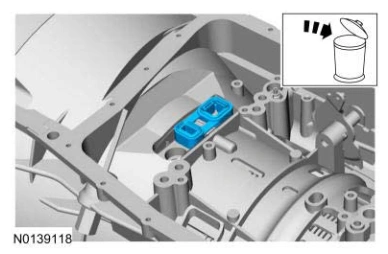

Shift Solenoids (Ss) — original illustration 1, reference 8984Original colors & callouts · Select to enlarge

NOTE: The green (7G087) center support feed tube seal may be replaced with an orange (7G087) center support feed tube seal.

16.

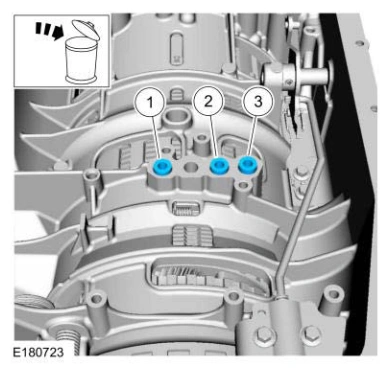

1. Center support feed tube seal (7G199 Black)

2. Center support feed tube seal (7G087 Green or Orange)

3. Center support feed tube seal (7G084 Blue)

Remove and discard the feed tubes.

Shift Solenoids (Ss) — original illustration 2, reference 8984Original colors & callouts · Select to enlarge

17. Remove the thermal bypass valve from the case. Inspect the thermal bypass valve for damage and discard the valve if damaged.
