Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,987HTML edition
← Chapter contentsManual collection

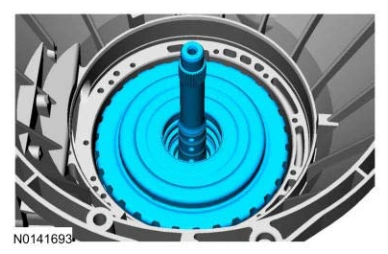

Shift Solenoids (Ss) — original illustration 1, reference 8987Original colors & callouts · Select to enlarge

24. Remove the caged T5 roller bearing from the direct (B) clutch assembly.

Shift Solenoids (Ss) — original illustration 2, reference 8987Original colors & callouts · Select to enlarge

25. Remove the direct (B) clutch assembly.

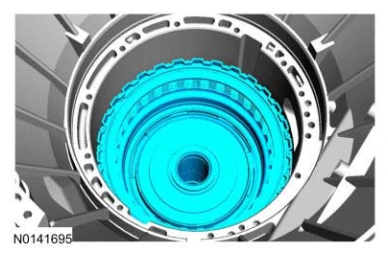

Shift Solenoids (Ss) — original illustration 3, reference 8987Original colors & callouts · Select to enlarge

26. Remove the bias spring.
