Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,985HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 8985Original colors & callouts · Select to enlarge

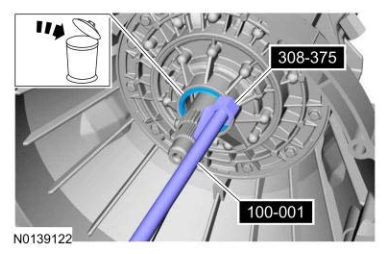

18. Using the special tools, remove and discard the front pump seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 308-375 Remover, Input Shaft Seal.

Shift Solenoids (Ss) — original illustration 2, reference 8985Original colors & callouts · Select to enlarge

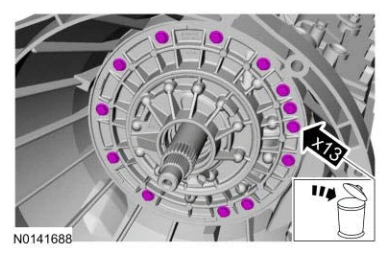

19. Remove and discard the front pump-to-case bolts and washers.

Shift Solenoids (Ss) — original illustration 3, reference 8985Original colors & callouts · Select to enlarge

20. Using the special tools, remove the pump. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 307-553 Remover, Transmission Fluid Pump.
