Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,983HTML edition
← Chapter contentsManual collection

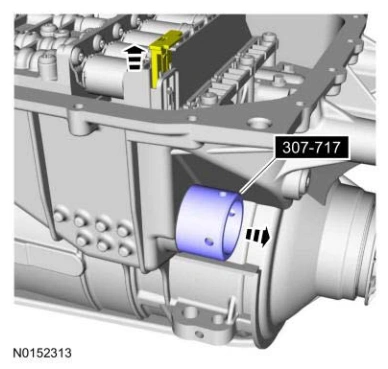

Shift Solenoids (Ss) — original illustration 1, reference 8983Original colors & callouts · Select to enlarge

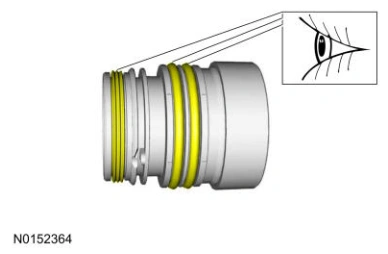

13. Inspect the bulkhead connector sleeve seals. If necessary, replace the seals.

Shift Solenoids (Ss) — original illustration 2, reference 8983Original colors & callouts · Select to enlarge

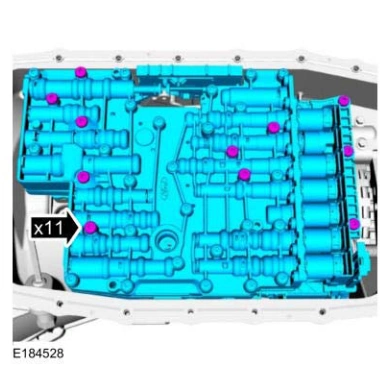

14. Remove the bolts from the main control assembly and remove the main control assembly.

Shift Solenoids (Ss) — original illustration 3, reference 8983Original colors & callouts · Select to enlarge

15. Remove and discard the front pump adapter seal.
