Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,982HTML edition

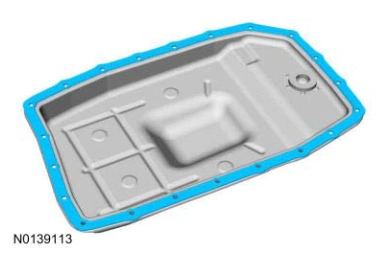

Shift Solenoids (Ss) — original illustration 1, reference 8982Original colors & callouts · Select to enlarge

10. Remove and discard the transmission fluid filter.

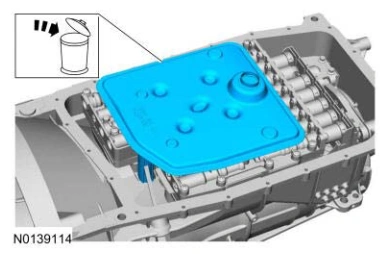

Shift Solenoids (Ss) — original illustration 2, reference 8982Original colors & callouts · Select to enlarge

11. Press the release tab and lift up on the bulkhead electrical connector retainer to release the bulkhead electrical connector shell.

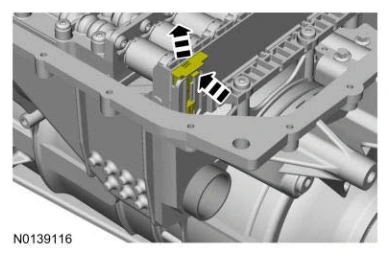

Shift Solenoids (Ss) — original illustration 3, reference 8982Original colors & callouts · Select to enlarge

12. With the transmission bulkhead connector sleeve retainer released, use the special tool to pull the outer shell of the bulkhead connector sleeve out of the transmission. Use Special Service Tool: 307-717 Remover, Kostal Sleeve.
