Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,986HTML edition

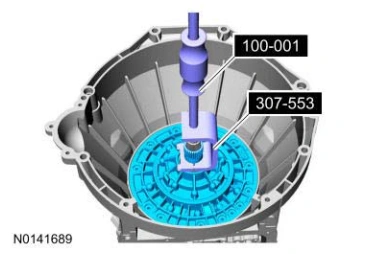

Shift Solenoids (Ss) — original illustration 1, reference 8986Original colors & callouts · Select to enlarge

NOTE: The selective shim may come out while removing the front pump.

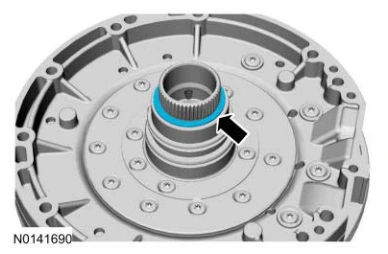

21. Inspect the back of the front pump for the selective shim and remove if necessary.

Shift Solenoids (Ss) — original illustration 2, reference 8986Original colors & callouts · Select to enlarge

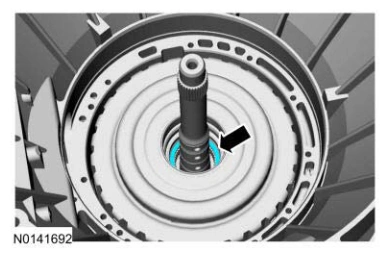

22. If the selective shim is not on the pump, using a magnet, remove it from the forward (A)/overdrive (E) clutch assembly.

Shift Solenoids (Ss) — original illustration 3, reference 8986Original colors & callouts · Select to enlarge

23. Remove the forward (A)/overdrive (E) clutch assembly.
