Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,989HTML edition
← Chapter contentsManual collection

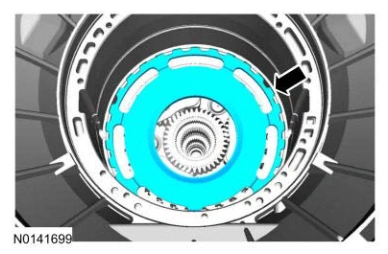

Shift Solenoids (Ss) — original illustration 1, reference 8989Original colors & callouts · Select to enlarge

NOTE: The selective shim might stick to the T7 thrust bearing during removal of the center support.

30. Remove the selective shim and the T7 thrust bearing.

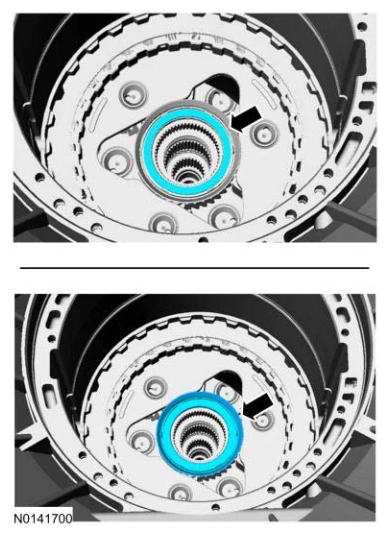

Shift Solenoids (Ss) — original illustration 2, reference 8989Original colors & callouts · Select to enlarge

NOTE: The selective shim might stick to the back of the center support assembly during removal.

31. Remove the selective shim from the center support assembly.
