Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,991HTML edition
← Chapter contentsManual collection

NOTE: Remove the bearings with the sun gear.

34. Remove the No. 3 sun gear.

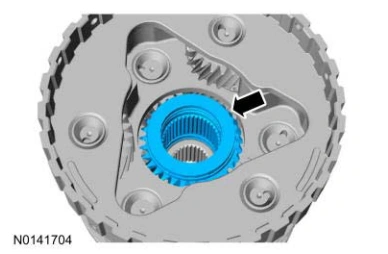

Shift Solenoids (Ss) — original illustration 1, reference 8991Original colors & callouts · Select to enlarge

35. Remove the top T8 and the bottom T9 roller bearings from the sun gear.

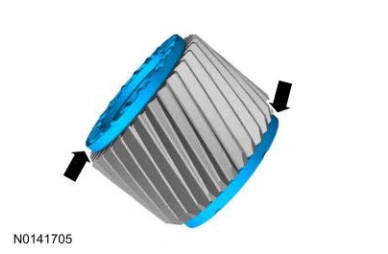

Shift Solenoids (Ss) — original illustration 2, reference 8991Original colors & callouts · Select to enlarge

36. Remove the T9 roller bearing race from the bottom of the carrier.

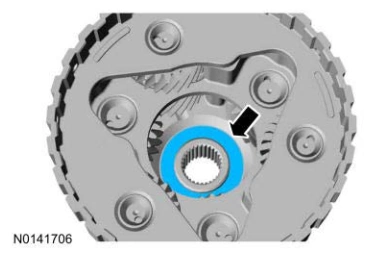

Shift Solenoids (Ss) — original illustration 3, reference 8991Original colors & callouts · Select to enlarge

NOTE: The T10 thrust bearing can stick to the planetary carrier.

37. Remove the T10 thrust bearing.
