Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,993HTML edition
← Chapter contentsManual collection

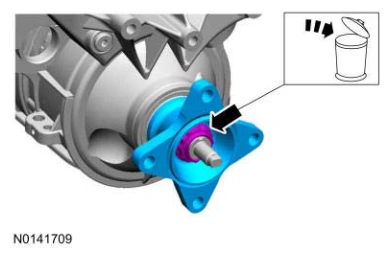

Shift Solenoids (Ss) — original illustration 1, reference 8993Original colors & callouts · Select to enlarge

40. Remove the output shaft flange seal and flange.

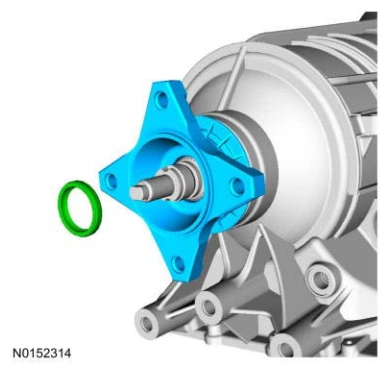

Shift Solenoids (Ss) — original illustration 2, reference 8993Original colors & callouts · Select to enlarge

41. Remove the planetary carrier hub, output shaft assembly and T11 bearing.

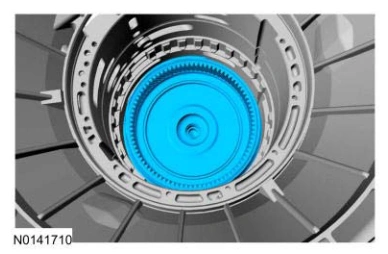

Shift Solenoids (Ss) — original illustration 3, reference 8993Original colors & callouts · Select to enlarge

42. Remove and discard the output shaft seal and remove the slip plane washer.
