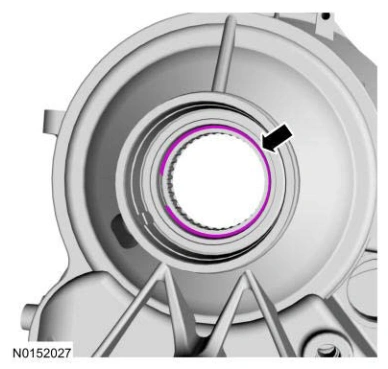

45. Remove the snap ring.

Shift Solenoids (Ss) — original illustration 1, reference 8995Original colors & callouts · Select to enlarge

NOTE: Use care when installing the Needle Bearing Remover. Look inside the transmission case to make sure that the Needle Bearing Remover contacts the bearing only and not the lip of the case, or damage to the case will occur.

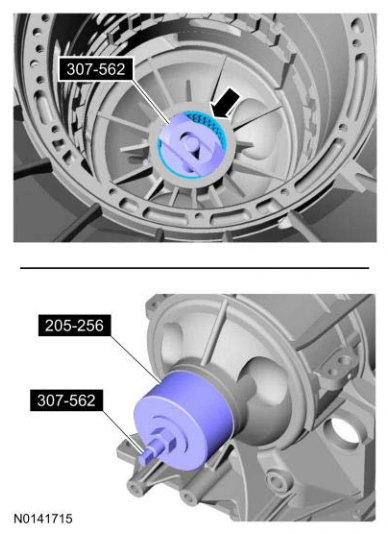

46. Install the special tools on the bearing and remove the bearing. Use Special Service Tool: 205-256 Installer, Front Wheel Hub Seal., 307-562 Remover, Needle Bearing.

Shift Solenoids (Ss) — original illustration 2, reference 8995Original colors & callouts · Select to enlarge

47. Remove and discard the 4 park rod actuating plate bolts and remove the park rod actuating plate.
