Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,998HTML edition

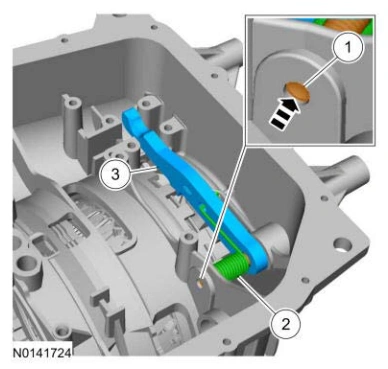

Shift Solenoids (Ss) — original illustration 1, reference 8998Original colors & callouts · Select to enlarge

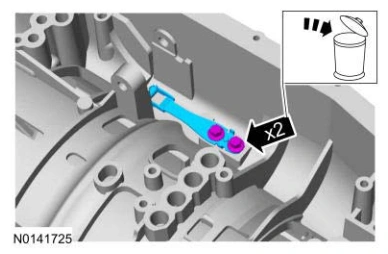

52. Remove and discard the 2 bolts and remove the park detent spring.

Shift Solenoids (Ss) — original illustration 2, reference 8998Original colors & callouts · Select to enlarge

53. Position the forward/overdrive clutch assembly in the special tool.Use Special Service Tool: 307-555 End Play Gauge, Clutch.
