Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,001HTML edition
← Chapter contentsManual collection

NOTE: The bearing may stick in the forward clutch drum.

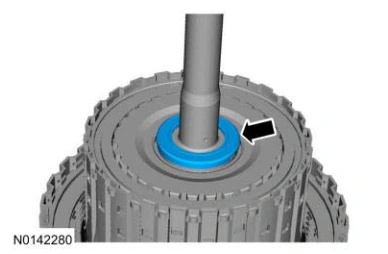

58. Remove the intermediate shaft T4 thrust bearing.

Shift Solenoids (Ss) — original illustration 1, reference 9001Original colors & callouts · Select to enlarge

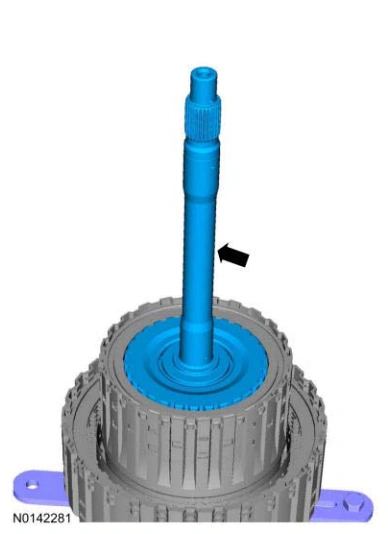

59. Remove the intermediate shaft assembly.

Shift Solenoids (Ss) — original illustration 2, reference 9001Original colors & callouts · Select to enlarge

60. If the T3 thrust bearing stuck to the intermediate shaft assembly, remove it from the intermediate shaft assembly. If the T3 thrust bearing is on the overdrive clutch, remove it from the overdrive clutch assembly.
