Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,999HTML edition

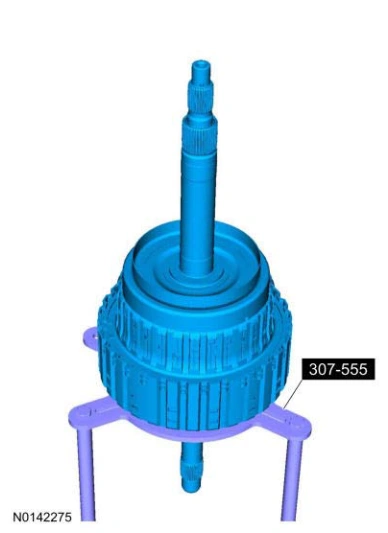

Shift Solenoids (Ss) — original illustration 1, reference 8999Original colors & callouts · Select to enlarge

54.

1. Locate the snap ring gap.

2. Index-mark the direct clutch outer shell snap ring gap location to the side of the forward clutch hub using a paint marker.

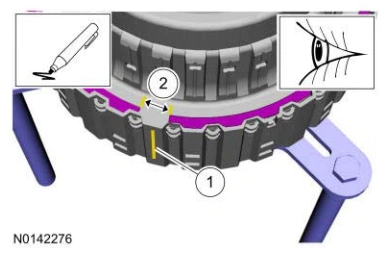

Shift Solenoids (Ss) — original illustration 2, reference 8999Original colors & callouts · Select to enlarge

55.

1. Locate the snap ring gap.

2. Pry the snap ring out of the groove 180 ° from the snap ring gap and remove and discard
