Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,002HTML edition

← Chapter contents Manual collection

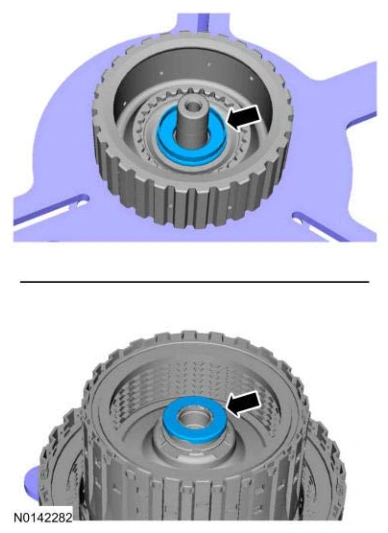

Shift Solenoids (Ss) — original illustration 1, reference 9002Original colors & callouts · Select to enlarge

61. Remove the overdrive clutch pack from the forward clutch pack.

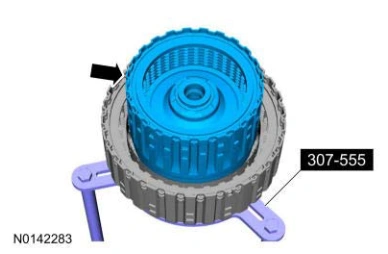

Shift Solenoids (Ss) — original illustration 2, reference 9002Original colors & callouts · Select to enlarge

62. If the T2 thrust bearing is on the forward clutch assembly, remove it from the forward clutch assembly.

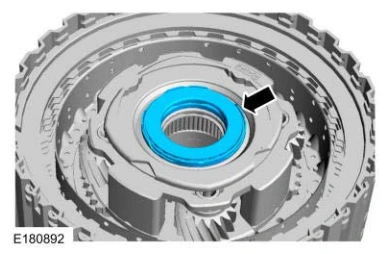

Shift Solenoids (Ss) — original illustration 3, reference 9002Original colors & callouts · Select to enlarge

63.
