Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,003HTML edition

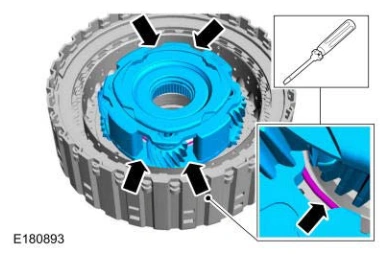

Remove the front planetary carrier and sun gear from the forward clutch assembly. Use a small screwdriver or a pick inserted into the front planetary assembly, push on the retaining ring in 4 places while lifting up on the front planetary assembly.Use the General Equipment: Flat Headed Screw Driver

Shift Solenoids (Ss) — original illustration 1, reference 9003Original colors & callouts · Select to enlarge

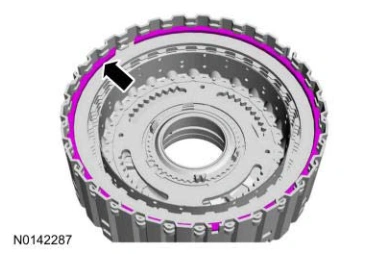

64. Remove the forward clutch pack snap ring.

Shift Solenoids (Ss) — original illustration 2, reference 9003Original colors & callouts · Select to enlarge

65. Remove the forward clutch steel and friction plates. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

Shift Solenoids (Ss) — original illustration 3, reference 9003Original colors & callouts · Select to enlarge

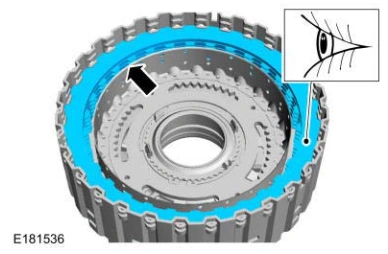

66. For correct alignment during assembly, make an identifying mark on the balance dam and the center part of the housing.
