Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,006HTML edition

← Chapter contents Manual collection

Shift Solenoids (Ss) — original illustration 1, reference 9006Original colors & callouts · Select to enlarge

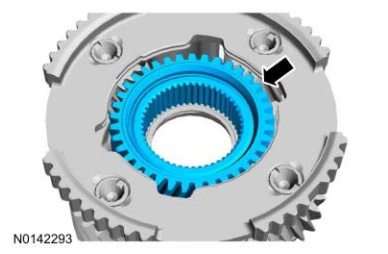

73. Remove the sun gear from the planetary carrier.

Shift Solenoids (Ss) — original illustration 2, reference 9006Original colors & callouts · Select to enlarge

NOTE: The T1 thrust bearing may have stuck to the sun gear when it was removed.

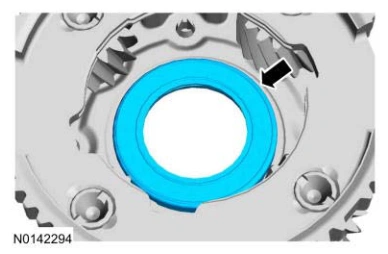

74. Remove the T1 bearing from the planetary carrier.

Shift Solenoids (Ss) — original illustration 3, reference 9006Original colors & callouts · Select to enlarge

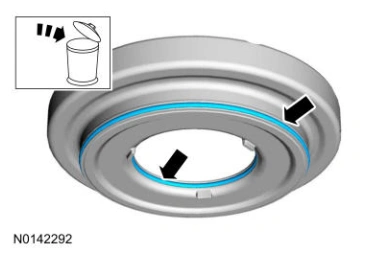

75. Remove the transmission fluid collector plate from the front planetary carrier.

Ford_Mustang_all_2015-2017.pdf · source reference 9006
