Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,009HTML edition

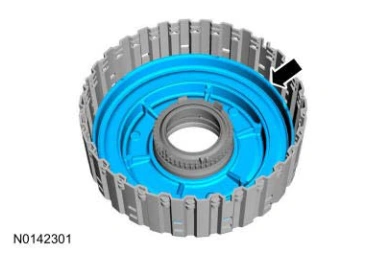

Shift Solenoids (Ss) — original illustration 1, reference 9009Original colors & callouts · Select to enlarge

83. Install the forward clutch return spring.

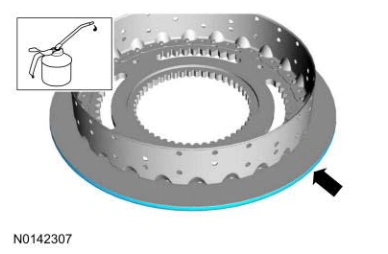

Shift Solenoids (Ss) — original illustration 2, reference 9009Original colors & callouts · Select to enlarge

84. Install a new O-ring seal onto the forward clutch balance dam. Lightly coat the O-ring seal with clean transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 3, reference 9009Original colors & callouts · Select to enlarge

85. Align the marks made during disassembly and install the balance dam into the forward clutch drum.
