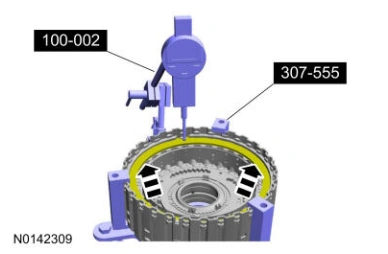

select fit snap ring. Record this reading as reading A. Use Special Service Tool: 100-002 (TOOL- 4201-C) Holding Fixture with Dial Indicator Gauge., 307-555 End Play Gauge, Clutch.

Shift Solenoids (Ss) — original illustration 1, reference 9012Original colors & callouts · Select to enlarge

92. Rotate the forward clutch assembly 180 degrees from the opening of the snap ring, take a second reading and record this reading as reading B.

Description	Reading
Reading A
Reading B
Average reading A and B for a total end clearance

NOTE: If the end clearance is not within specification, install a new snap ring until the correct specification is achieved.

Step 93

0.71-1.10 mm (0.028-0.043 in)

If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is high, re-measure using a thicker select fit snap ring. If the free pack end clearance between the bottom of the snap ring and the top of the pressure plate is low, re-measure using a thinner select fit snap ring.

94. Install the sun gear and planetary gearset into the forward clutch drum. Make sure it snaps and locks in place.
