Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,010HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9010Original colors & callouts · Select to enlarge

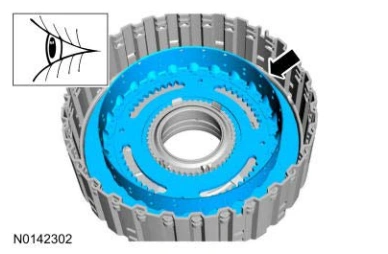

NOTE: Prior to releasing the special tool, make sure that the snap ring is fully seated.

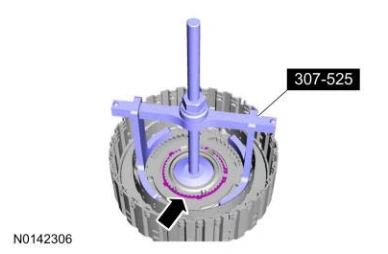

86. Using the special tool, slightly collapse the balance dam and install the retaining ring. Use Special Service Tool: 307-525 Compressor, Clutch Spring.

Shift Solenoids (Ss) — original illustration 2, reference 9010Original colors & callouts · Select to enlarge

NOTE: Friction and steel plate quantity will vary based on engine displacement.

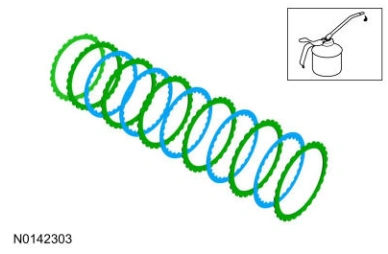

87. Soak the forward clutch plates in clean transmission fluid. For friction and steel plate quantity, refer to the Clutch Plate Quantity Chart. Refer to: Specifications .

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 3, reference 9010Original colors & callouts · Select to enlarge
