Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,008HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9008Original colors & callouts · Select to enlarge

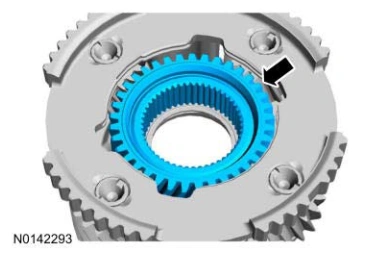

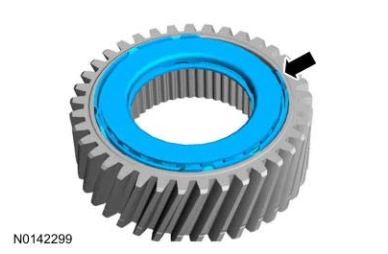

80. Install the sun gear into the planet assembly with the T1 bearing facing down and the recessed part of the gear up.

Shift Solenoids (Ss) — original illustration 2, reference 9008Original colors & callouts · Select to enlarge

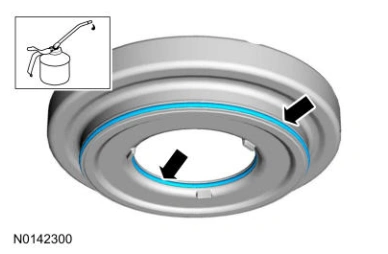

81. Install new O-ring seals onto the forward clutch piston. Lightly coat the O-ring seal with clean transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Shift Solenoids (Ss) — original illustration 3, reference 9008Original colors & callouts · Select to enlarge

82. Install the forward clutch piston into the forward clutch drum.
