Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,007HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9007Original colors & callouts · Select to enlarge

76. Clean and inspect the components of the forward clutch assembly for damage and install new components as necessary.

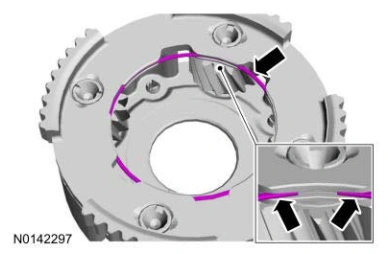

NOTE: If a new planetary assembly is being installed, the new planetary assembly may not come with the snap ring installed.

77. Install the planetary assembly snap ring, if necessary. Make sure the planetary snap ring is oriented correctly.

Shift Solenoids (Ss) — original illustration 2, reference 9007Original colors & callouts · Select to enlarge

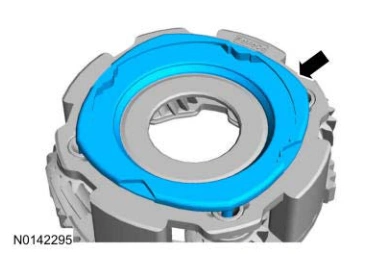

78. Install the transmission fluid collector plate on the front planetary carrier.

Shift Solenoids (Ss) — original illustration 3, reference 9007Original colors & callouts · Select to enlarge

79. Install the T1 bearing onto the sun gear.
