Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,005HTML edition
← Chapter contentsManual collection
Shift Solenoids (Ss) — original illustration 1, reference 9005Original colors & callouts · Select to enlarge

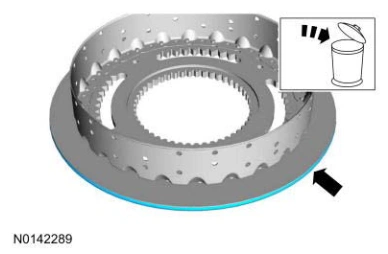

70. Remove the forward clutch return spring.

Shift Solenoids (Ss) — original illustration 2, reference 9005Original colors & callouts · Select to enlarge

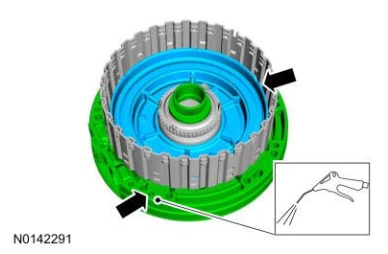

71. Install the forward clutch on the front pump to remove the forward clutch piston. Apply a small amount of shop air to remove the piston.

Shift Solenoids (Ss) — original illustration 3, reference 9005Original colors & callouts · Select to enlarge

72. Remove and discard the inner and outer piston O-ring seals.
