Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,004HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9004Original colors & callouts · Select to enlarge

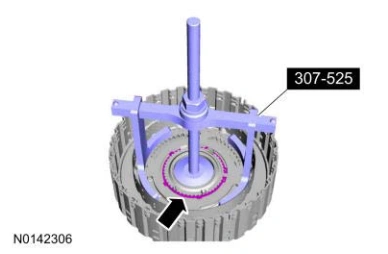

67. Using the special tool, slightly collapse the balance dam to access to the retaining ring and remove the retaining ring. Use Special Service Tool: 307-525 Compressor, Clutch Spring.

Shift Solenoids (Ss) — original illustration 2, reference 9004Original colors & callouts · Select to enlarge

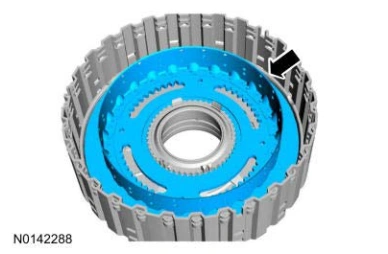

68. Remove the balance dam.

Shift Solenoids (Ss) — original illustration 3, reference 9004Original colors & callouts · Select to enlarge

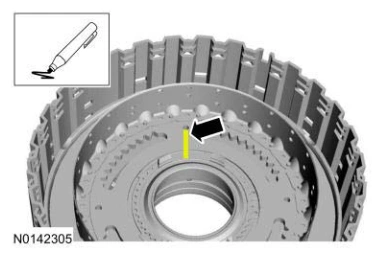

69. Remove and discard the O-ring seal from the balance dam.
