88. Install the forward clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates and install the pressure plate.

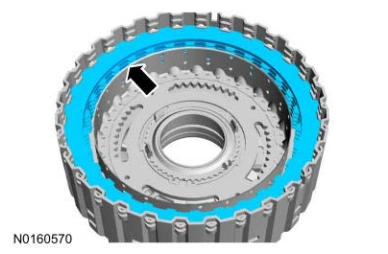

Shift Solenoids (Ss) — original illustration 1, reference 9011Original colors & callouts · Select to enlarge

89. Install the forward clutch plate snap ring.

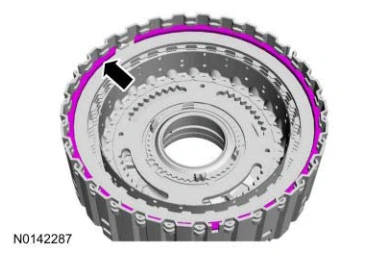

Shift Solenoids (Ss) — original illustration 2, reference 9011Original colors & callouts · Select to enlarge

NOTE: All forward clutch plates, friction and steel are of a wave-type design.

90. Install the forward clutch assembly on the Clutch End Play Gauge and install the dial indicator gauge. Position the plunger so it fits into the snap ring gap. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge., 307-555 End Play Gauge, Clutch.

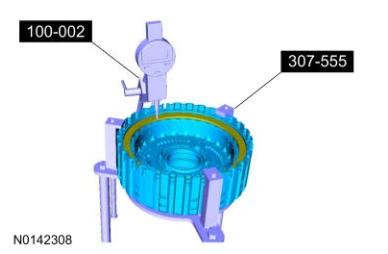

Shift Solenoids (Ss) — original illustration 3, reference 9011Original colors & callouts · Select to enlarge

91. With the dial indicator gauge set at zero, lift up on the steel pressure plate so it is against the
