Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,013HTML edition

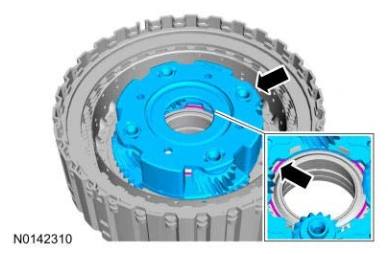

Shift Solenoids (Ss) — original illustration 1, reference 9013Original colors & callouts · Select to enlarge

95. Install the T2 thrust bearing.

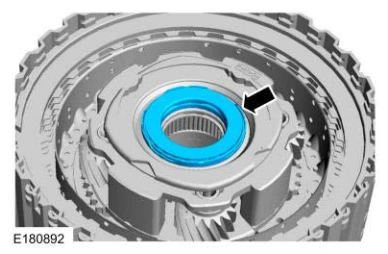

Shift Solenoids (Ss) — original illustration 2, reference 9013Original colors & callouts · Select to enlarge

96. Position the overdrive clutch assembly into the special tool and remove the T3 thrust bearing. Use Special Service Tool: 307-555 End Play Gauge, Clutch.

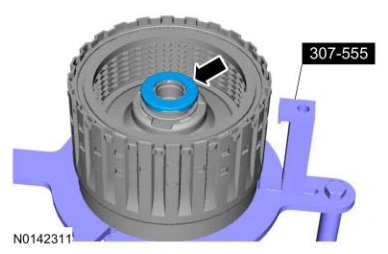

Shift Solenoids (Ss) — original illustration 3, reference 9013Original colors & callouts · Select to enlarge

97. Remove the overdrive clutch pack snap ring.
